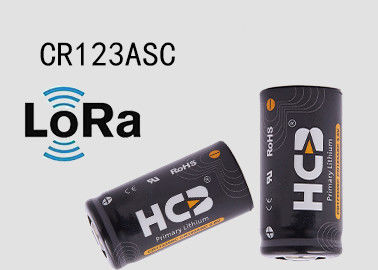

CR123ASC 2100mAh CR17335SC Lithium Manganese Dioxide Batteries Li-SOCl2 Cell Internet of Things IOT
Highest capacity CR123A currently known in the world
CR17335SC Characteristics (23±2oC, in 1 year)
- Open Circuit Voltage ≥3.1V
- Nominal Capacity 2100mAh
- Maximum Continuous Current 25mA
- Battery discharged for minimum 50% of rated capacity
- Maximum Pulse Discharge Current 100mA
- Battery discharged for minimum 50% of rated capacity
- with max pulse for 3 seconds after 27 seconds break
- Storage Condition Temperature ≤ 30℃
- Humidity ≤ 75%RH
- Operating Temperature - 40~+85℃
- Self-discharge Rate ≤2%
Features
High Voltage
• Nominal voltage up to 3.0 V
High Energy Density
• Specific energy density up to 260 Wh/kg
Wide Operating Temperature Range
• -40°C to +85°C
Long Shelf Life
• Self discharge rate is less than 2% per year at room temperature
• High capacity, stable performance, no passivation effect
• Glass-to-metal seal
• Bobbin and spiral structure is available for different applications
Bobbin Benefits
Excellent safety record, high capacity
Typical Applications
Low power consumption & long shelf life equipment,
like calculator, industrial PC CMOS, memory support power, etc.
Spiral Benefits
High discharging current, high load voltage
Typical Applications
High power consumption equipment, like water meter,indicating lights, etc.
